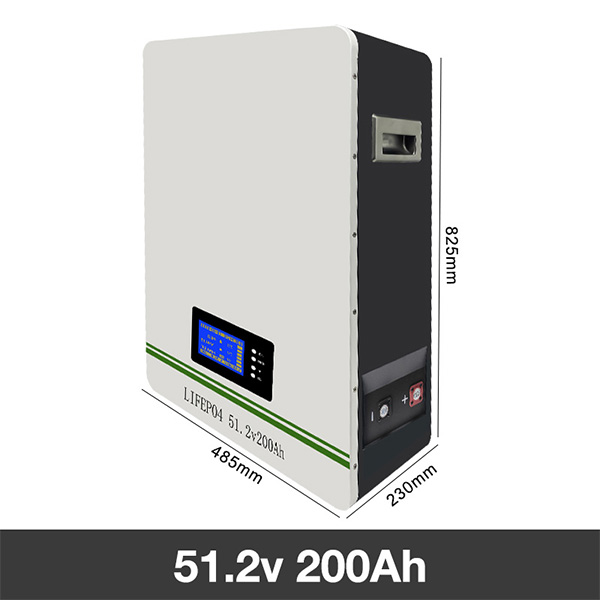

Wall mounted storage battery 51.2V50AH-51.2V200AH

Household energy storage batteries, an important component of distributed energy resources (DER). Distributed energy supply can realize transmission and distribution cost savings, achieve lower costs and improve energy efficiency. Reduces electricity costs, serves as an emergency backup power source, and improves the reliability of home power supply;
Classification: Grid-connected home optical storage system and off-grid home optical storage system. Generally for the whole set of battery capacity of 30kVA or less, with small size – small footprint, high cycle times – long service life as the main characteristics.

Can be used for, solar energy storage, wind energy storage, electrical energy storage,Home Energy Storage, Server Energy Storage

product description

High capacity, long life, expandable.

Built-in LiFePO4 Battery cells. Large capacity, long cycle life, high safety, environmental protectionIntelligent communicationSupport parallel capacity expansion, frame design structure, to meet the demand of large capacity power

Home energy storage battery safety

Multiple Safety Protection
Effectively protects the battery from damage and extends battery life in the event of extreme battery problems.
Overcharge protection
Over-voltage protectionOver-discharge protectionShort circuit protectionReverse connection protectionOver-current protection

Rack-mounted design structural features

New A-grade large single cell
Higher energy density and longer cycle life than ordinary batteries

Compatible with all kinds of electrical digital equipment, lasting power supply

Built-in power type lithium iron phosphate battery. Large capacity, long cycle life, high security, green and environmentally friendly intelligent communication support parallel expansion, rack design structure, to meet the demand for large capacity power.
Supports parallel expansion, rack design structure, to meet the demand for large capacity power consumption.

Large capacity, long cycle life

Built-in lithium iron phosphate battery. Large capacity, long cycle life, high security, green intelligent communication support parallel expansion, rack design structure, to meet the demand for large capacity power Built-in lithium iron phosphate battery core.
Supports parallel expansion, frame design structure, meets the demand for large capacity power consumption

Our Partners

Product data

ModelER-RC48050ER-RC48200
Battery typeLiFePO4LiFePO4
Nominal Voltage51.2V51.2V
Amp Hour Capacity50AH200AH
Energy Density2560Wh10240Wh
Charging cutoff Voltage58.4±0.20V58.4±0.20V
Discharge cutoff Voltage40±0.20V 40±0.20V
Max Charge Current50A200A
Max Discharge Current50A200A
Charge Temperature(0 to 45)℃(-3 to 65)℃
Discharge Temperature(-20 to 65)℃(-23 to 65)℃
Dimension (LxWxH)440*350*155mm580*440*240mm
Weight25kgs85kgs
Shipping ClassificationUN3480,Class9UN3480,Class
Cycle Life(0.5C,25℃@80%DOD)>5000 cycles>6200 cycles
Other CertificationsCB/CECB/CE

Product Application

company display

Workshop diagram

product Certificate

Battery Certificate

Request for Quotation
